Kin Si Construction Equipment Ltd.

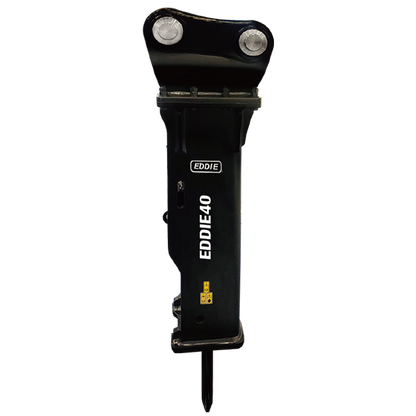

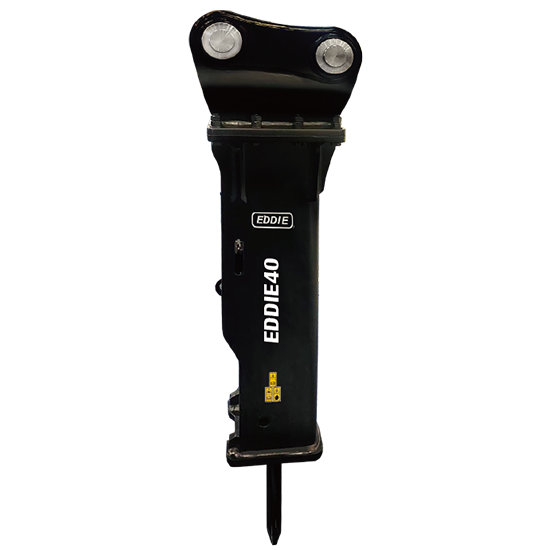

EDDIE40 Silenced Breakers

EDDIE40 Silenced Breakers

Main Specifications
  • Suitable Carriers: 0.8-2.5t
  • Impact Frequency: 800-1400bpm
  • Valve Type: Inner Valve Type

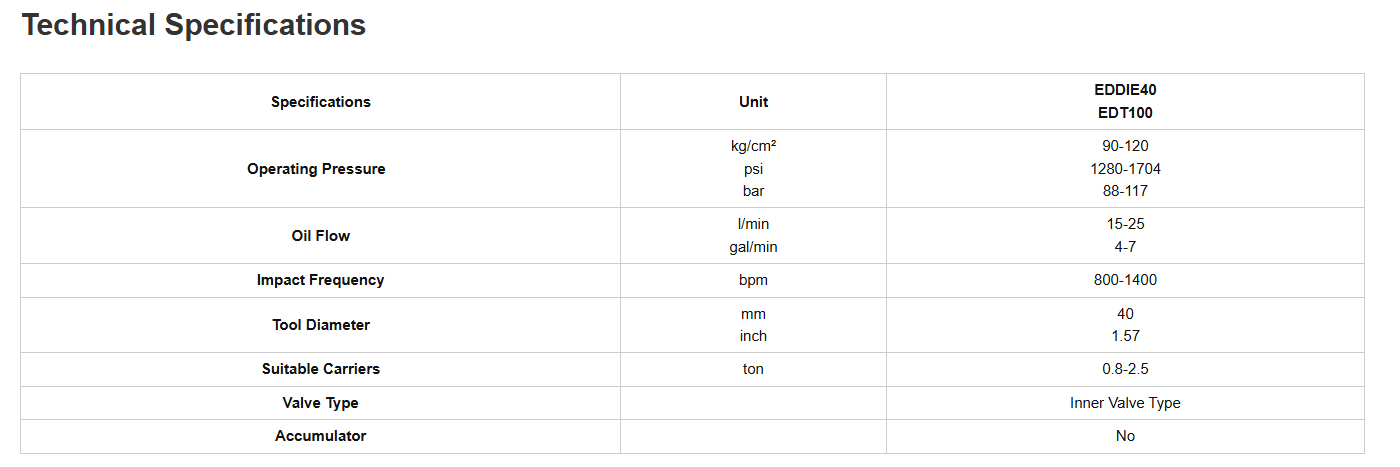

    Technical Specifications
    Specifications Unit EDDIE40
    EDT100
    Operating Pressure   kg/cm²
    psi
    bar    		 90-120
    1280-1704
    88-117
    Oil Flow l/min
    gal/min    		 15-25
    4-7
    Impact Frequency bpm 800-1400
    Tool Diameter mm
    inch    		 40
    1.57
    Suitable Carriers ton 0.8-2.5
    Valve Type 　

    Inner Valve Type
    Accumulator 　

    No
